GfA Elektromaten SI 55.10 NHK DES Ø40-Safedrive® 550Nm with Emergency Hand Crank
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Other customers also bought
SI-ELEKTROMATEN, Drive for non-balanced doors which require an anti-fallback device, the patented safety brake is built into the gear, output torque 500Nm, output speed 10 rpm, hollow-shaft-Ø 40mm, supply voltage 3~230V/400V, with emergency hand crank for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.
Description:
The GfA SI-ELEKTROMATEN "Safedrive" are special drives for industrial doors than require an anti-fallback device.
Features:
- Patented safety brake built into the gear

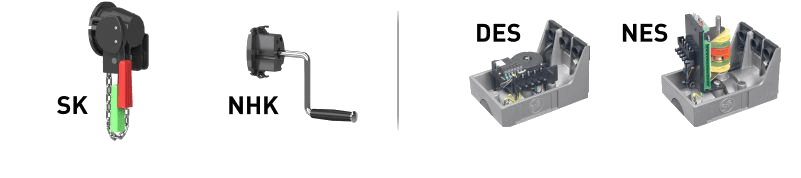

- All models operate with a manual override on an emergency hand crank
- All models contain a digital limit switch
- Supply voltage 3~230V/400V
| Emergency Operation: | Hand Crank |
|---|---|
| Hollow- / Output-Shaft (Ø): | 40 mm |
| Limit Switch type: | digital Limit Switch DES (GfA Elektromaten) |
| Limit Swtich Range: | 20 |
| Locking Torque: | 1100 Nm |
| Max. output speed CLOSE for frequency inverter operation: | 18 min^-1 |
| Max. output speed OPEN for frequency inverter operation: | 18 min^-1 |
| Output Speed: | 10 min^-1 |
| Output Torque: | 550 Nm |
| Power: | 0.75 kW |
| Supply Voltage: | 3~230/400 V |
| max. Movements per Hour: | 16 |
